ADVANCED TOOLING MANUFACTURING

100% IN-HOUSE PRECISION MACHINING FOR SUB-MICRON TOOLING

True precision cannot be outsourced. We maintain complete control over our manufacturing process, from raw material cutting to final die assembly. Equipped with 8 imported Sodick Wire EDMs and Taiwan precision grinders, our in-house facility guarantees a machining accuracy of ±0.002mm. This end-to-end capability allows us to drastically reduce lead times, control costs, and deliver tungsten carbide progressive dies that perform flawlessly for over 120 million strokes.

SUBMIT YOUR CAD DRAWING

ZERO OUTSOURCING RISK

END-TO-END MANUFACTURING UNDER ONE ROOF

Relying on fragmented supply chains leads to tolerance stack-ups and delayed shipments. We have eliminated these risks. Our facility is fully equipped with auxiliary material preparation machines, including heavy-duty gantry milling, double-sided milling, and edge trimming machines. By handling everything from the initial steel block preparation to the final precision grinding and fitting internally, we eliminate third-party markups, win precious time for our clients, and ensure every component meets our rigorous quality standards.

STATE-OF-THE-ART EQUIPMENT

ENGINEERED WITH WORLD-CLASS MACHINING CENTERS

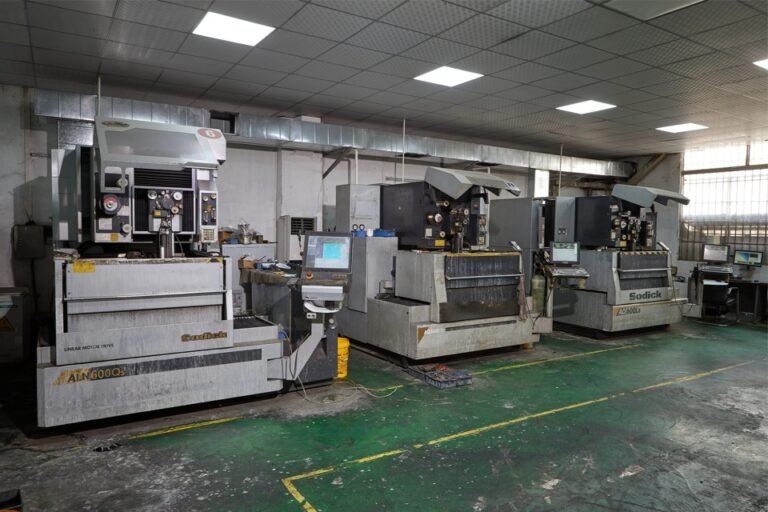

8x Sodick Slow-Feed Wire EDMs

Imported from Japan, our fleet of 8 Sodick EDMs utilizes oil-bath cutting to eliminate thermal stress and cobalt depletion, achieving an astonishing ±0.002mm contour accuracy for delicate carbide punches.

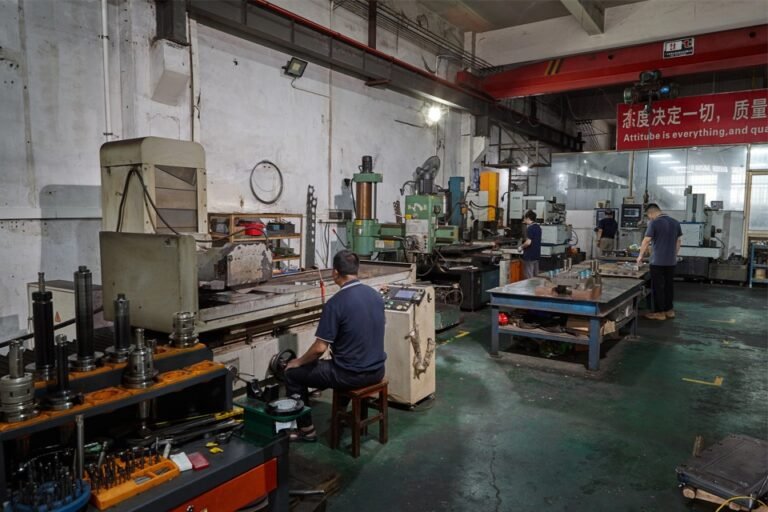

Taiwan Precision Profile Grinders

Equipped with 3 Taiwan high-precision profile grinders and 2 large-format surface grinders. We achieve Ra 0.1 mirror finishes on all cutting edges, drastically minimizing stamping friction.

Gantry & Double-Sided Milling

Our heavy-duty gantry milling and double-sided milling machines ensure the die shoes (mold bases) are perfectly flat and parallel before they ever reach the high-precision finishing department.

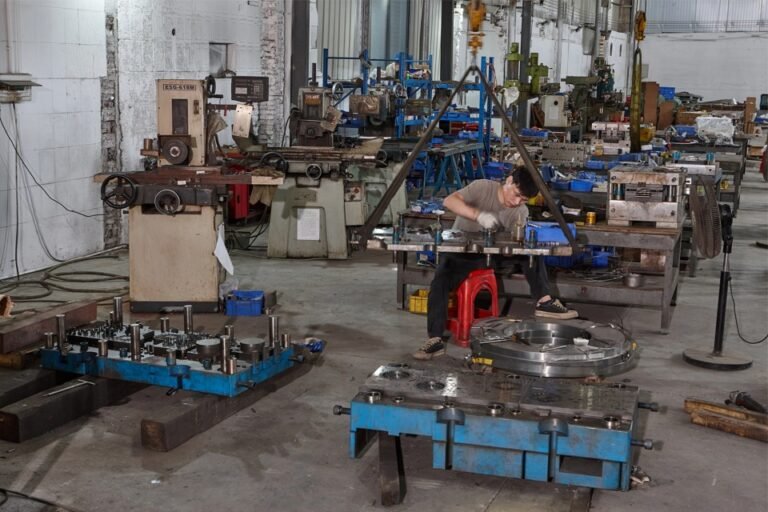

Expert Fitting & Assembly

Precision components mean nothing without perfect alignment. Our veteran toolmakers assemble each progressive die with surgical precision, ensuring smooth punch-to-matrix clearances prior to trial stamping.

CARBIDE EXPERTISE

MACHINING ULTRA-HARD CARBIDE FOR 120M+ STROKES

Tungsten carbide is notoriously difficult to machine due to its extreme hardness and brittleness. Standard machining methods often cause micro-cracks that lead to premature punch failure during mass production. We have perfected the art of carbide machining. By combining multi-pass Sodick EDM technology with sub-micron optical grinding, we preserve the structural integrity of the carbide. This is how we confidently guarantee a 120-million-stroke lifespan for your motor core stamping dies, drastically lowering your overall tooling maintenance costs.

START YOUR PROJECT TODAY

EXPERIENCE TRUE MANUFACTURING PRECISION

Skip the middlemen. Work directly with a fully-equipped tooling factory that controls every micrometer of your project.

REQUEST A QUOTE ➔

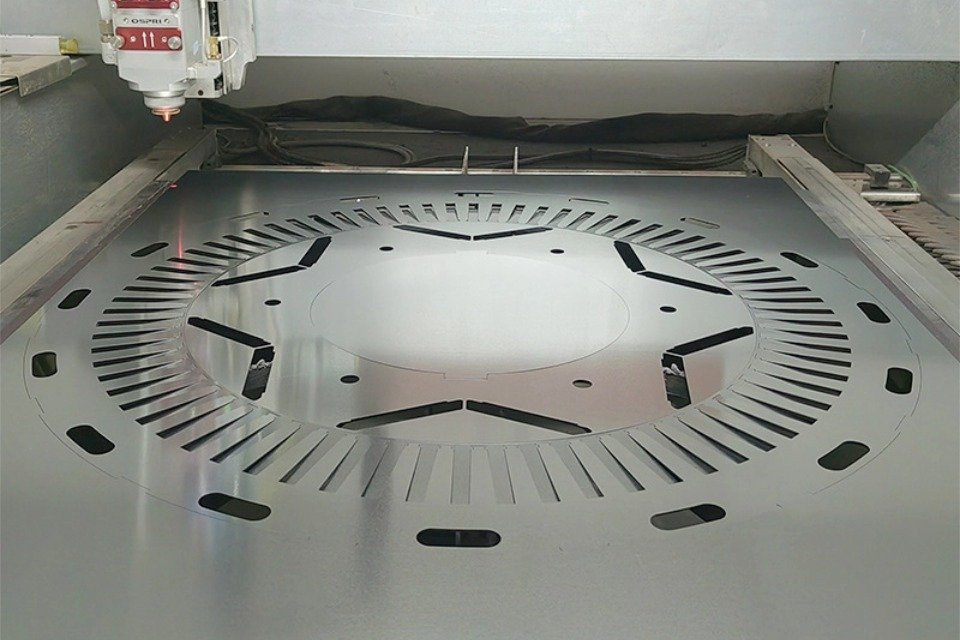

Production of large industrial motor core laminations
