Airtight Concentricity Control
Strict bore and OD tolerances are maintained via multi-stage die piloting, ensuring ultra-uniform air gaps crucial for preventing vibration in scroll and rotary compressors.
HVAC & REFRIGERATION MOTOR SOLUTIONS
HIGH-EFFICIENCY MOTOR CORE STAMPING FOR COMMERCIAL & EV COMPRESSORS
Engineered for extreme reliability, continuous 24/7 operation, and maximum Energy Efficiency Ratio (EER). We specialize in precision stamping for scroll, rotary, and reciprocating compressor motors used in commercial HVAC, industrial refrigeration, and EV thermal management systems. With our heavy-duty tungsten carbide progressive dies and in-house steam blueing processes, we deliver indestructible stator and rotor cores that thrive in harsh, refrigerant-rich environments.
THE EXTREME LOAD CHALLENGE
MAINTAINING AIRTIGHT PRECISION UNDER SEVERE REFRIGERANT PRESSURES
Compressor motors operate under brutal conditions: high temperatures, intense vibrations, and constant exposure to corrosive refrigerants (like Freon or R410A). Any rotor eccentricity or loose core interlocking can cause mechanical friction, leading to fatal compressor failure. We conquer this by using sub-micron optical-ground stamping dies that ensure absolutely perfect concentricity. Furthermore, our specialized automated interlocking and welding techniques create a rock-solid core stack that withstands intense pressure fluctuations without deforming.
INDUSTRIAL RELIABILITY

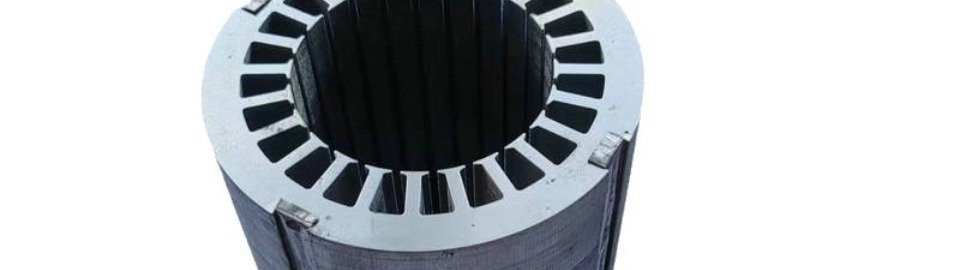

ADVANCED CORE ASSEMBLY FOR HEAVY-DUTY COMPRESSORS
Explore our specialized stamping and surface treatment capabilities engineered to maximize the lifespan and thermal efficiency of your commercial and EV compressor motors.
COMPRESSOR-GRADE MATERIALS
OPTIMIZED SILICON STEEL FOR MAXIMUM EER RATIOS
Energy consumption is the critical metric for commercial HVAC systems. We carefully select premium CRNGO steel from top mills to minimize hysteresis and eddy current losses. Whether it’s robust 0.50mm material for industrial refrigeration or low-loss 0.35mm for EV scroll compressors, we guarantee the magnetic flux you need.
GLOBAL HVAC SUPPLY CHAIN
CHOOSE YOUR COMPRESSOR MOTOR SUPPLY STRATEGY
Scale your compressor manufacturing with our dual-delivery model. Import our highly durable progressive stamping dies for your global press shops, or outsource the complete lamination stamping and blueing process to our ISO-certified facilities.
Buy Tooling: Compressor Progressive Dies
Import custom carbide progressive dies designed for severe-duty compressor cores. Built to guarantee perfect concentricity and 120 million strokes over its lifetime.
Explore Tooling Solutions ➔Buy Cores: Mass Production OEM
Skip the capital tooling investment. We stamp, interlock, and apply steam blueing to your compressor cores, delivering finished, ready-to-wind stators globally.
Explore Lamination Stamping ➔COMPRESSOR STAMPING FAQ
EXPERT ANSWERS ON COMPRESSOR MOTOR CORES
Have technical questions about steam blueing, scroll compressor core designs, or maintaining high EER ratings? Review our FAQs below or contact our engineers to discuss your HVAC project.
Why is steam blueing (oxidation) necessary for compressor motor cores?
Compressor motors are hermetically sealed inside the unit and constantly exposed to refrigerants (Freon, R410A) and lubricating oils. Steam blueing creates a dense Fe3O4 oxide layer on the steel surface. This not only prevents rust but also significantly improves inter-lamination resistance, thereby lowering eddy current losses.
What is the difference between stamping for Rotary and Scroll compressors?
Rotary compressors often require standard concentric cores, while Scroll compressors (especially for EV thermal management) require extremely compact designs and ultra-precise air gaps to maintain high volumetric efficiency. We use 0.35mm high-efficiency silicon steel and sub-micron carbide tooling specifically tailored for EV scroll applications.
How do your progressive dies improve the EER (Energy Efficiency Ratio) of our compressors?
EER drops when magnetic flux is disrupted by burrs or excessive mechanical stress. Our optical-ground carbide punches ensure a razor-clean cut with <0.01mm burr. Additionally, our automated in-die interlocking process minimizes stress on the steel, retaining its optimal magnetic permeability.
We manufacture large commercial central air conditioners. Can you stamp cores larger than 250mm?
Yes. For large commercial chillers and heavy industrial compressors, we utilize large-format Single-Hit Compound Dies on our high-tonnage presses. This ensures that even massive stator laminations maintain 100% flatness and perfect concentricity in a single stroke.
