HIGH-SPEED MOTOR CORE PROGRESSIVE DIES

Engineered for ultra-high-volume production. Our tungsten carbide progressive dies feature auto-interlocking and rotary skewing technologies, delivering strict ±0.002mm concentricity. Perfectly tailored for EV Traction Motors and Home Appliances . Backed by our 100% in-house machining capabilities.

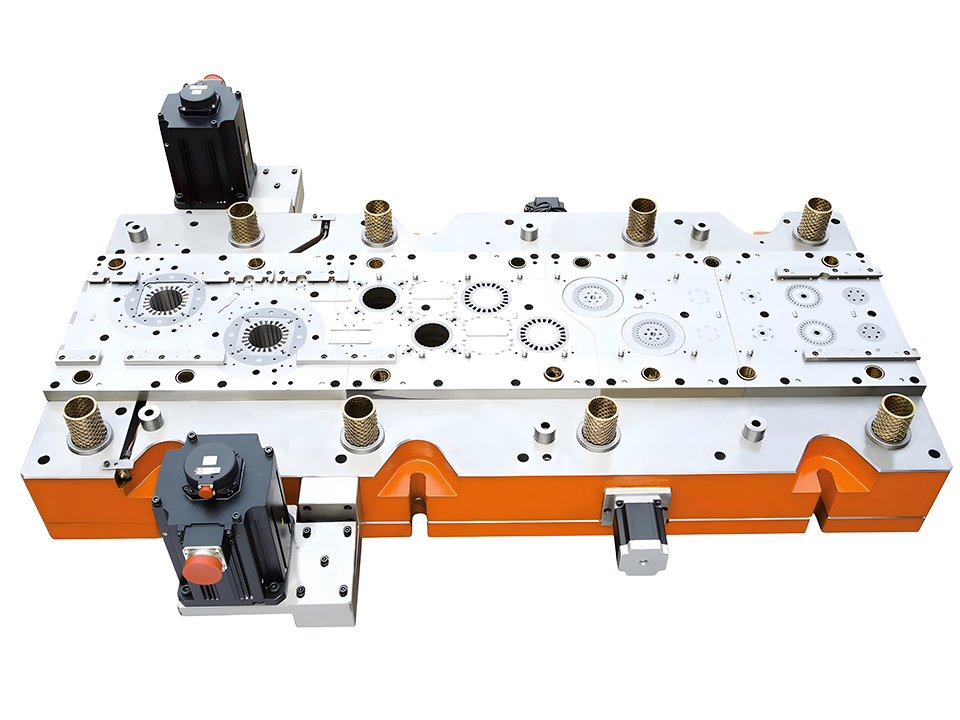

Advanced progressive die for motor core
CORE CAPABILITIES

PRECISION ENGINEERED FOR EXCELLENCE

Our high-speed progressive dies are designed to meet the exacting standards of modern motor manufacturing, ensuring flawless lamination stacking and minimal maintenance.
  • Die Material: 100% Imported Tungsten Carbide
  • Concentricity Toleranc: ±0.002mm
  • Guaranteed Lifespan: 120,000,000+ Strokes
  • Applicable Material: Silicon Steel (0.2mm - 0.5mm)

AUTO-INTERLOCKING SYSTEM

In-die automatic stacking technology for stators and rotors, eliminating the need for secondary welding or riveting processes.

ROTARY SKEWING

Stepless skewing control to significantly reduce motor cogging torque.

MODULAR SPARE PARTS

Quick-change insert design minimizes production downtime.
PROVEN RESULTS

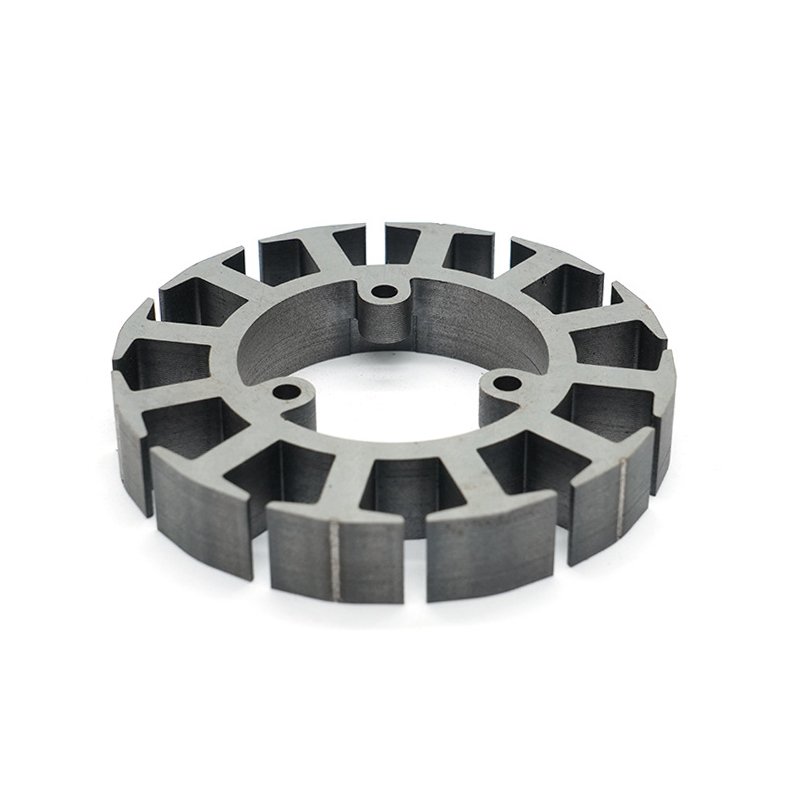

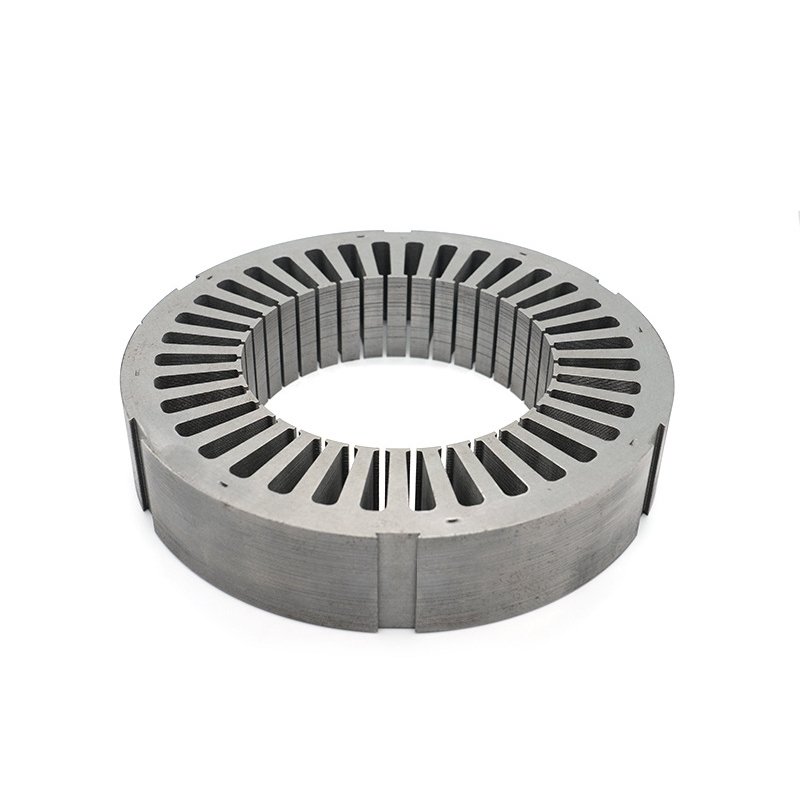

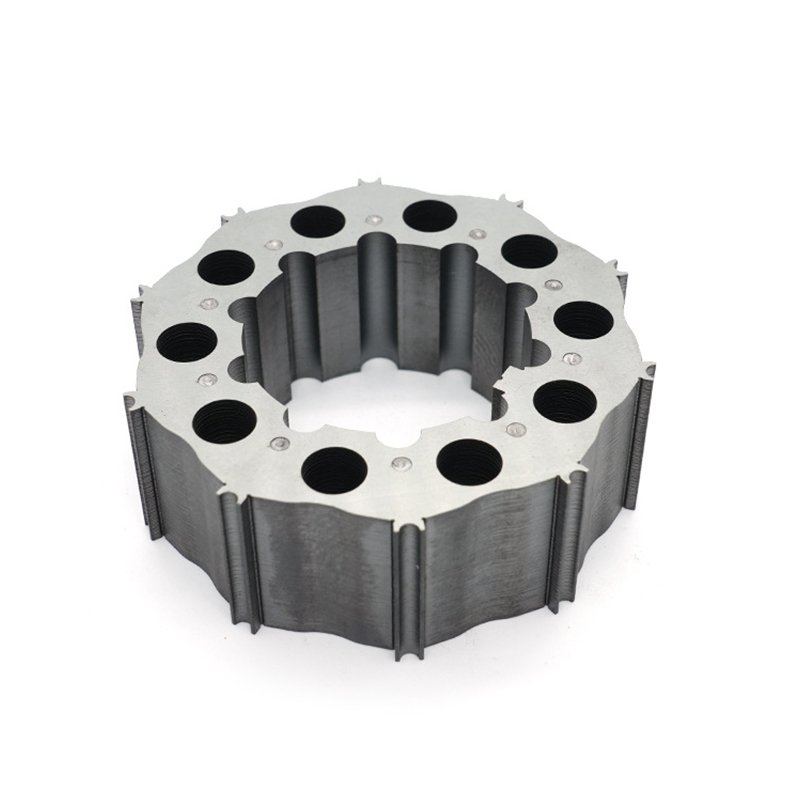

FLAWLESS STATOR & ROTOR LAMINATIONS

The ultimate proof of a premium progressive die is the lamination it produces. Explore our gallery of burr-free, perfectly interlocked silicon steel cores. From micro UAV motors to large EV traction motors, we ensure absolute consistency in every stroke.
STAMPING PROCESS

PRECISION MULTI-STATION STRIP LAYOUT

Our high-speed progressive dies integrate complex operations into a single continuous stamping process. From precision piercing to in-die interlocking, every station is engineered for maximum stability at high SPM (Strokes Per Minute).

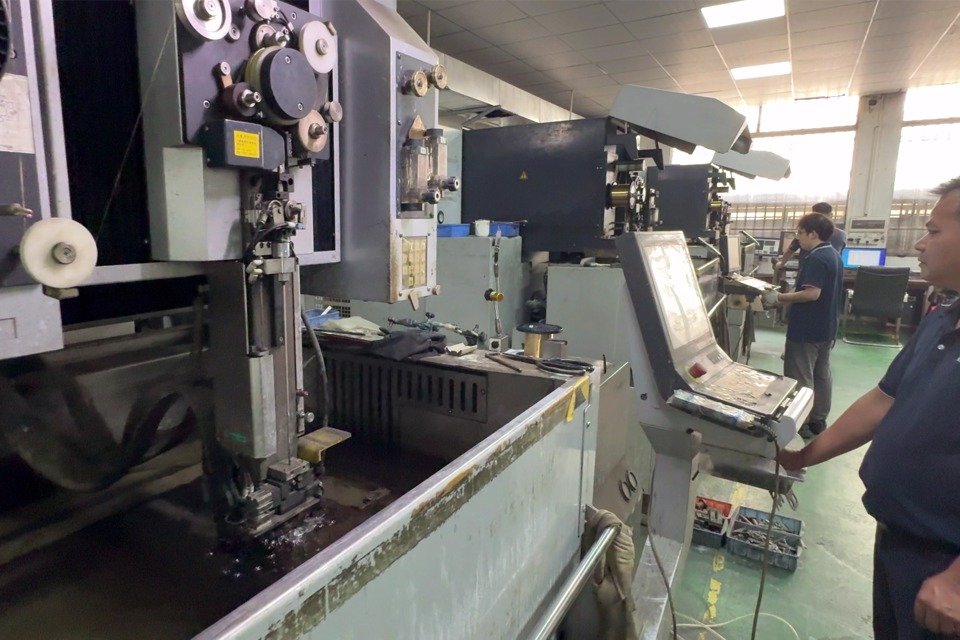

Pilot Piercing & Shaft Hole Stamping

High-precision tungsten carbide punches create exact reference points and rotor shaft holes with minimal burr, setting the baseline for sub-micron accuracy.
High-precision tungsten carbide punches create exact reference points and rotor shaft holes with minimal burr, setting the baseline for sub-micron accuracy.

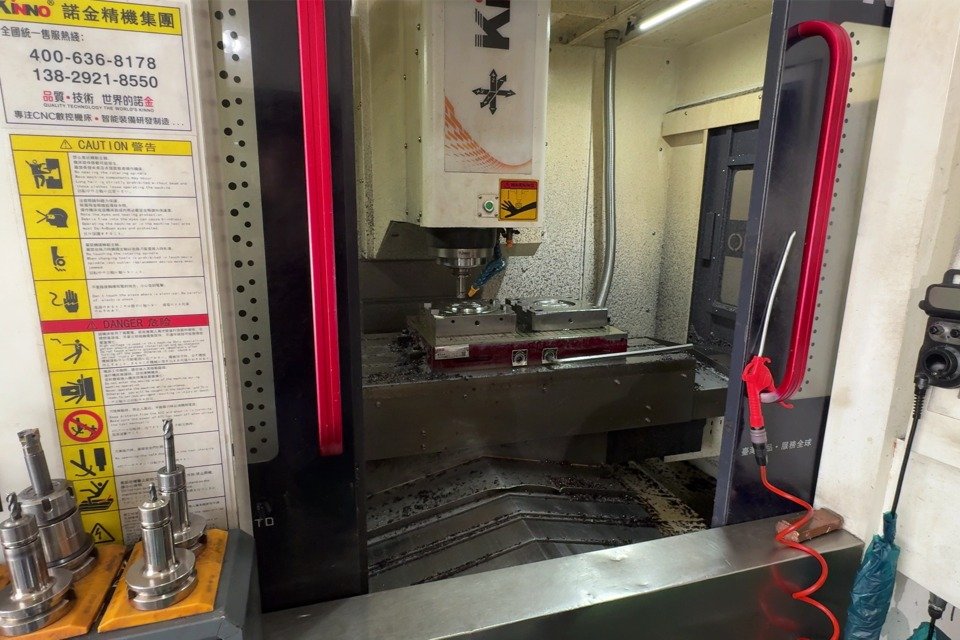

Auto-Interlocking & Stacking

Engineered with precise interlocking nibs that press individual laminations together automatically inside the die, forming a solid stator-rotor core stack.
Engineered with precise interlocking nibs that press individual laminations together automatically inside the die, forming a solid stator-rotor core stack.

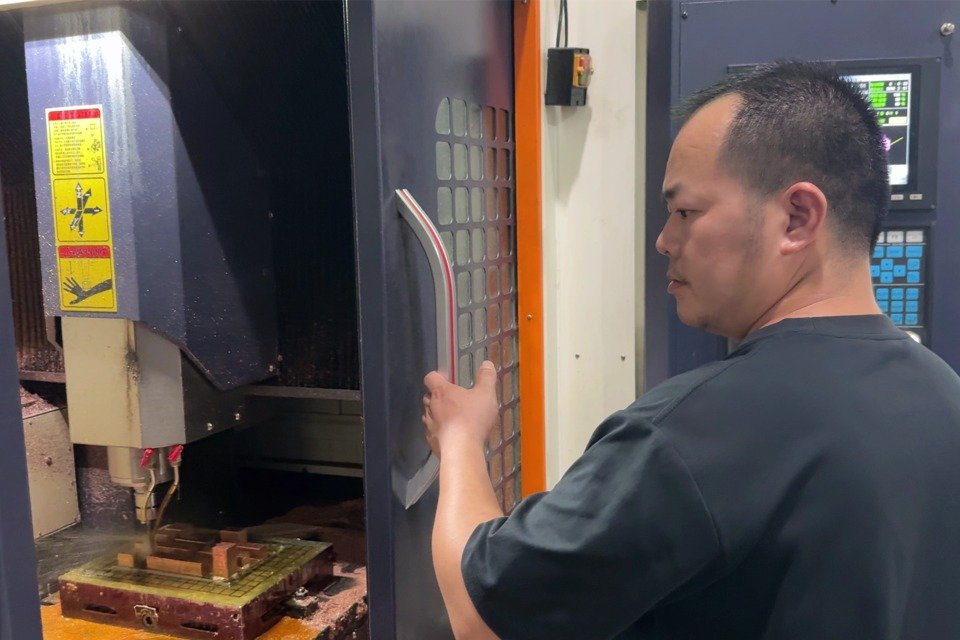

Rotary Skewing & Indexing

Stepless servo-driven rotational indexing offsets every lamination by a precise angle, neutralizing thickness variations in silicon steel coils.
Stepless servo-driven rotational indexing offsets every lamination by a precise angle, neutralizing thickness variations in silicon steel coils.

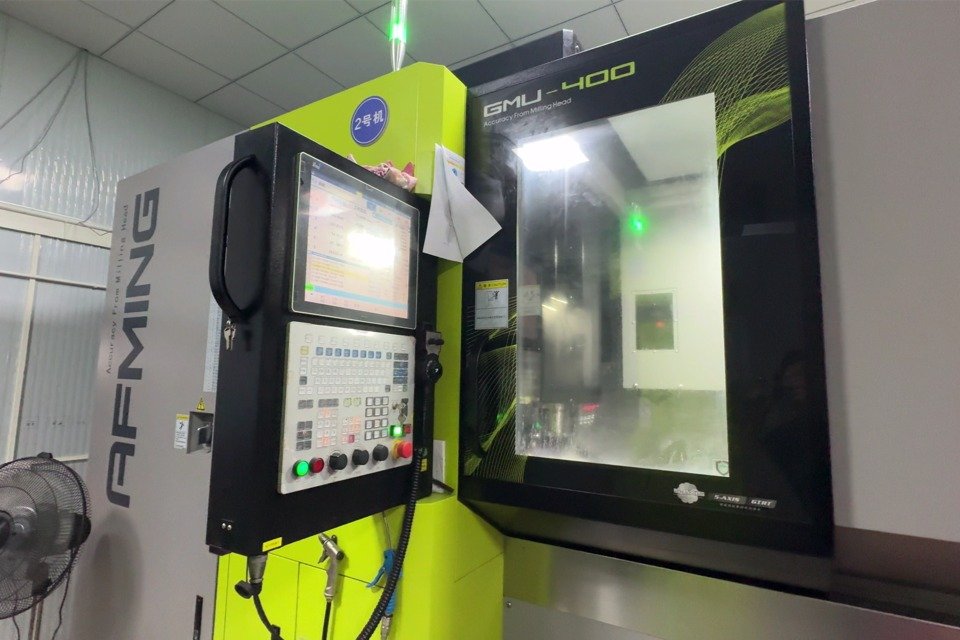

Outer Blanking & Part Ejection

Final carbide matrix blanking delivers razor-thin edge clearances, smoothly separating completed motor cores ready for immediate assembly.
Final carbide matrix blanking delivers razor-thin edge clearances, smoothly separating completed motor cores ready for immediate assembly.
APPLICATIONS

TAILORED FOR HIGH-PERFORMANCE MOTORS

Whether you are manufacturing ultra-quiet compressor motors or high-torque EV traction motors, our progressive dies deliver customized lamination geometry for diverse industries.
EV & Traction Motors
High-speed multi-cavity dies for refrigerator compressors, washing machines, and air conditioner fan motors.
Ultra-precise lamination tooling requiring exact concentricity for high-efficiency robotics and automation.
Durable, high-torque lamination dies engineered for series-excited and lightweight BLDC motors.

EV & Traction Motors

Large-diameter progressive dies designed for high-power density silicon steel laminations with zero-misalignment interlocking.
EV Motor Tooling Solutions →

Home Appliance Motors

High-speed multi-cavity dies for refrigerator compressors, washing machines, and air conditioner fan motors.
Appliance Motor Solutions →

Industrial Servo & BLDC Motors

Ultra-precise lamination tooling requiring exact concentricity for high-efficiency robotics and automation.
Servo & BLDC Solutions →

Power Tool & Drone Motors

Durable, high-torque lamination dies engineered for series-excited and lightweight BLDC motors.
Drone & Power Tool Solutions →
of
LIFECYCLE SUPPORT

CARBIDE SPARE PARTS & TOOLING MAINTENANCE

To ensure continuous mass production, we provide 100% interchangeable tungsten carbide punches, die inserts, and guide bushings. Every spare part is ground to identical tolerances, allowing seamless field replacement without re-aligning the entire die set.
  • 100% Interchangeable Carbide Punches
  • Emergency Spare Parts Shipment
  • Comprehensive Tooling Maintenance Manual

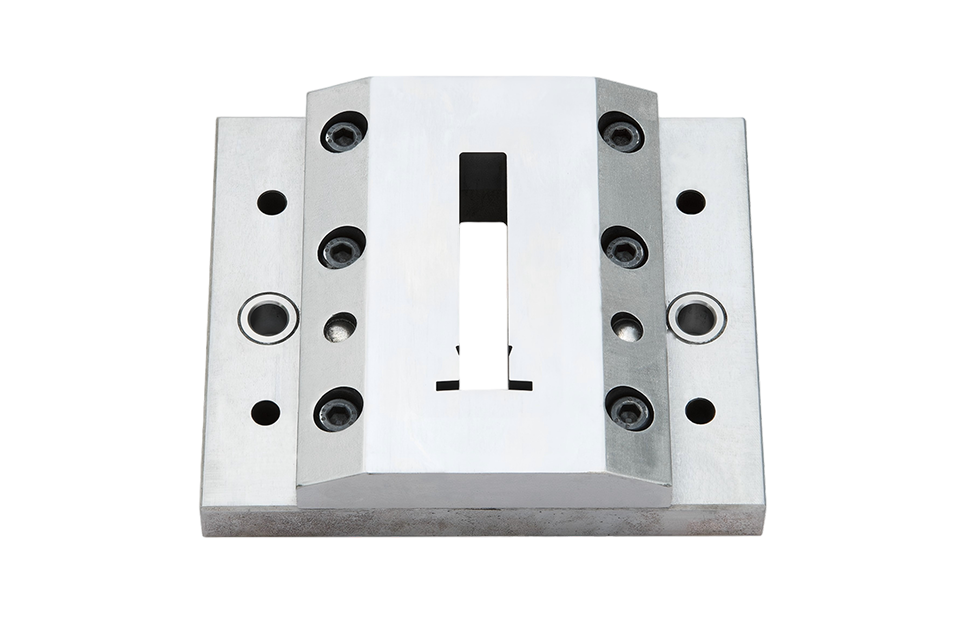

Motor core mold with punch
TECHNICAL FAQ

EXPERT ANSWERS TO YOUR TOOLING QUERIES

Have specific technical requirements for your motor core project? Review our technical FAQs below, or contact our engineering team directly for a custom DFM consultation.

We primarily utilize premium imported tungsten carbide grades (such as Sandvik or Kennametal equivalents) with fine grain structures, offering superior wear resistance and impact toughness specifically tuned for high-speed silicon steel stamping.

Our precision machining permits cutting clearances tight enough to stamp ultra-thin electrical steel laminations down to 0.2mm without burr, ideal for high-efficiency EV and servo motors.

Our progressive dies integrate automated rotary skewing/indexing systems. By rotating stator or rotor laminations by a specified angle during stacking, coil thickness variations are evenly distributed, eliminating lamination stack tilting.

Standard lead time ranges from 4 to 6 weeks after DFM and CAD drawing approval, including 100% in-house machining, assembly, and high-speed stamping trials.
