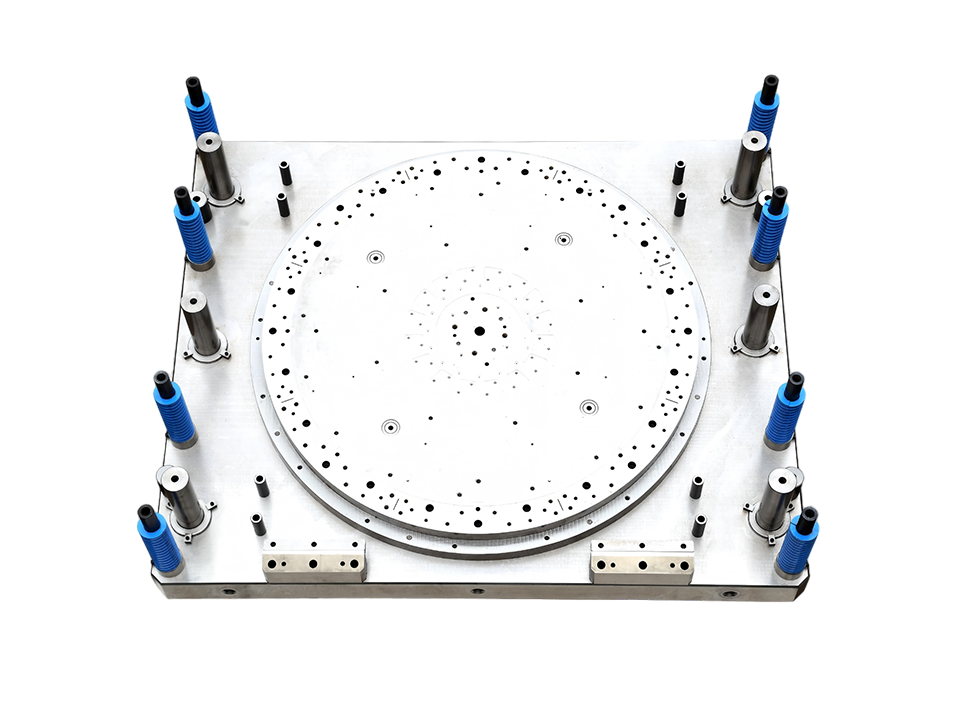

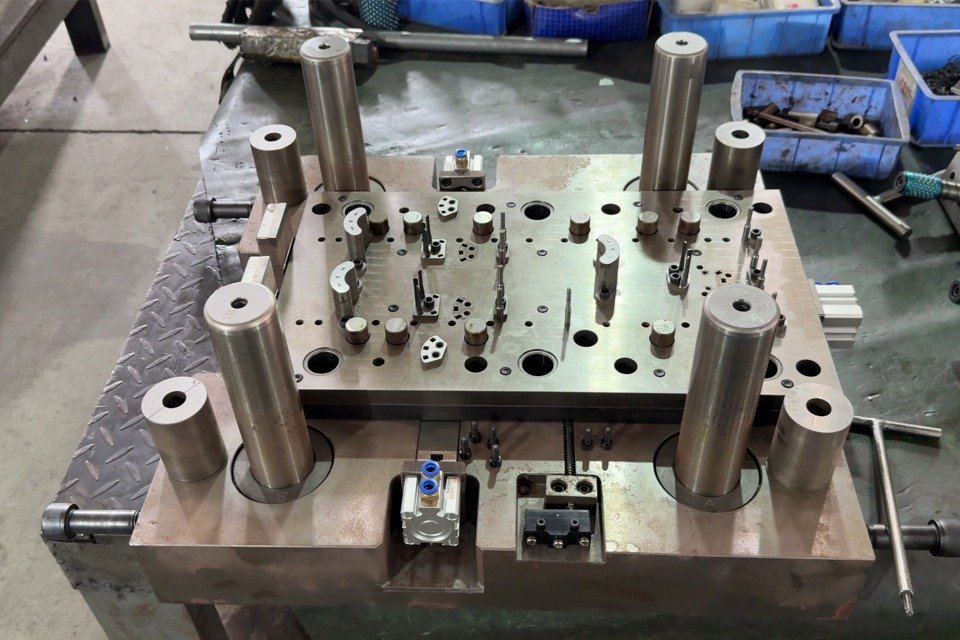

HIGH-PRECISION TUNGSTEN CARBIDE STAMPING DIES
Engineered for extreme wear resistance and ultra-long production runs. Our tungsten carbide motor core dies feature premium imported carbide inserts ground to sub-micron tolerances, delivering guaranteed lifespans up to 120 million strokes. Whether integrated into high-speed progressive dies or single-hit compound dies, our carbide tooling minimizes downtime and maximizes your ROI.
ENGINEERED FOR EXTREME DURABILITY & SUB-MICRON PRECISION

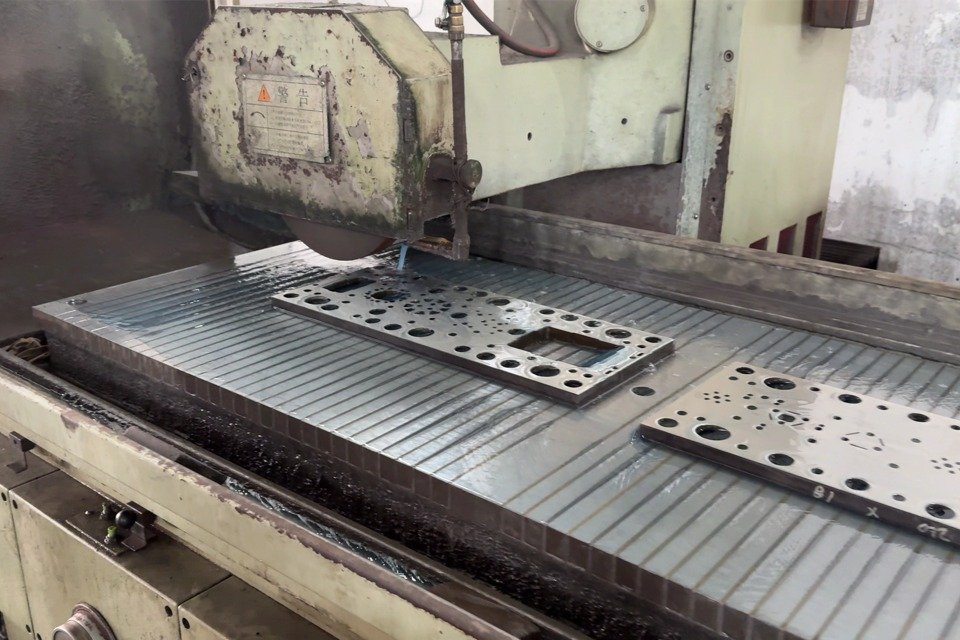

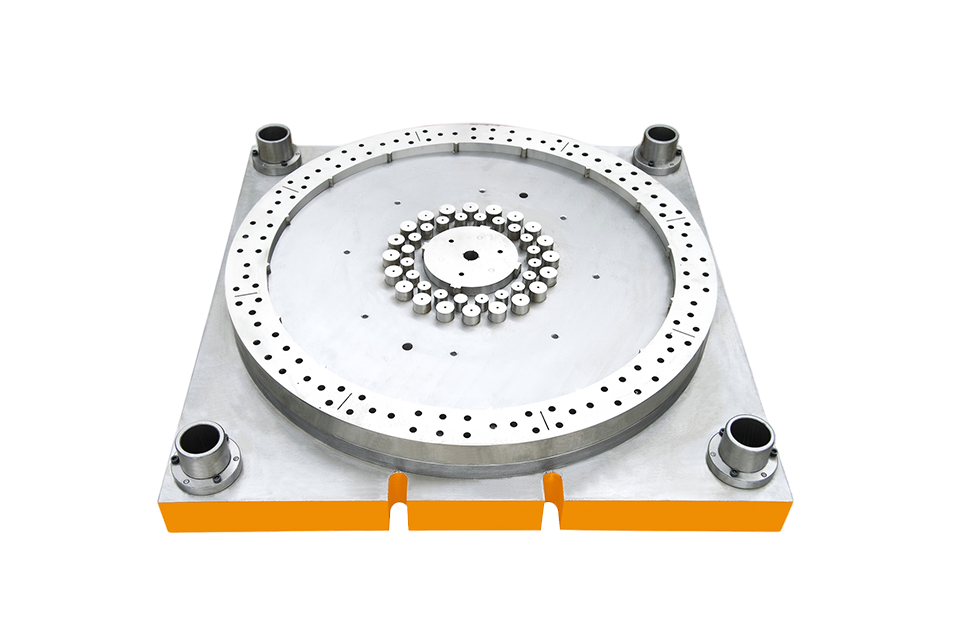

Engineered to withstand continuous high-speed stamping impacts, our tungsten carbide motor core dies integrate fine-grain carbide matrix inserts ground to ±0.002mm precision using our 100% in-house precision machining. By maintaining ultra-sharp cutting edges over tens of millions of strokes, they provide the foundation for our guaranteed 120M+ stroke lifespan across both high-speed progressive dies and single-hit compound dies.
EXTREME WEAR RESISTANCE FOR HIGH-SPEED STAMPING
EXTENDED REGRINDING INTERVALS

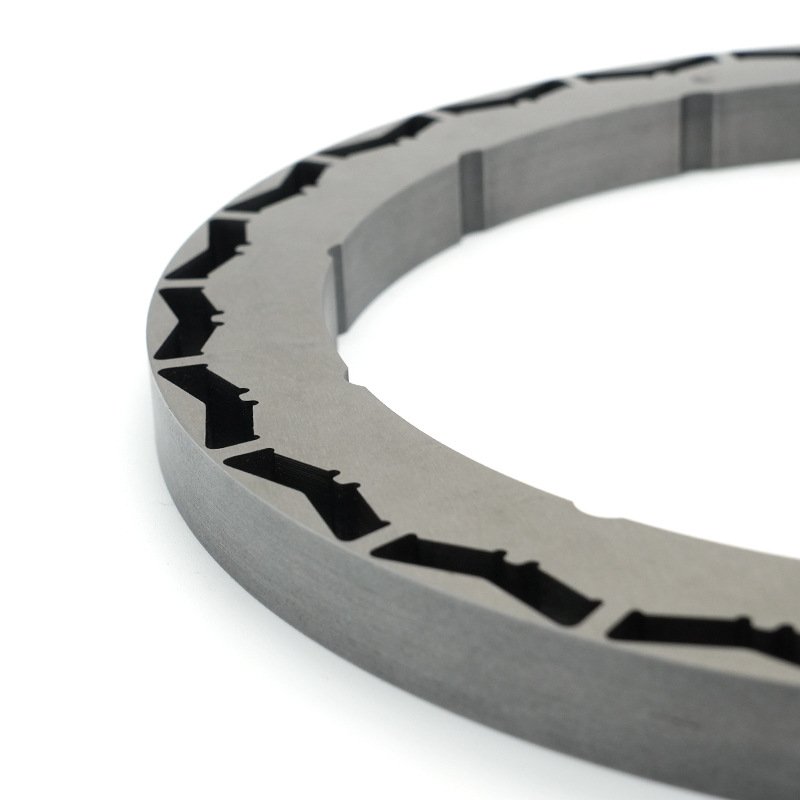

SUB-MICRON EDGE CLEARANCE

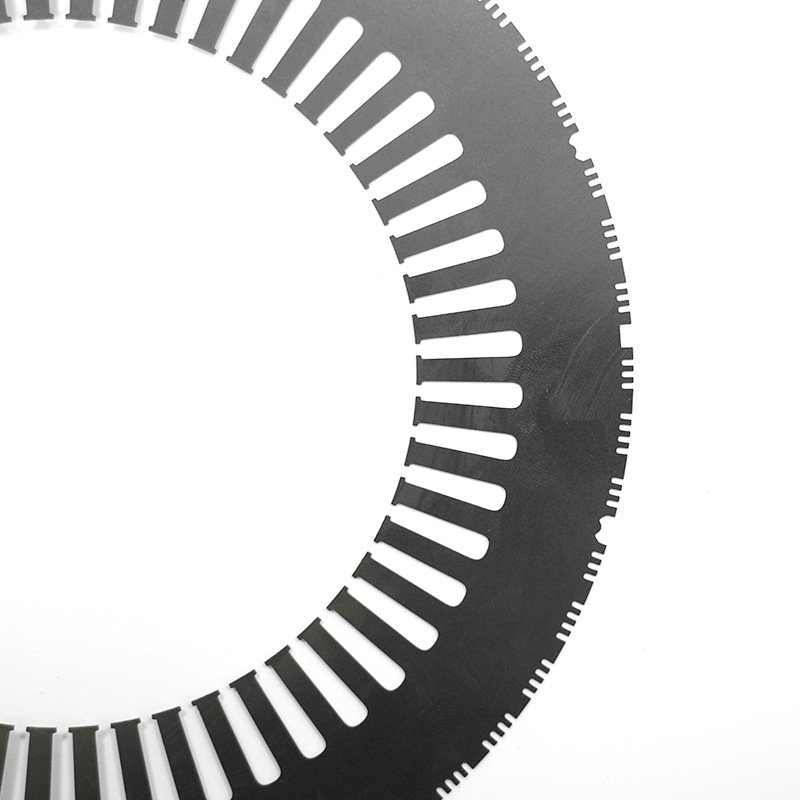

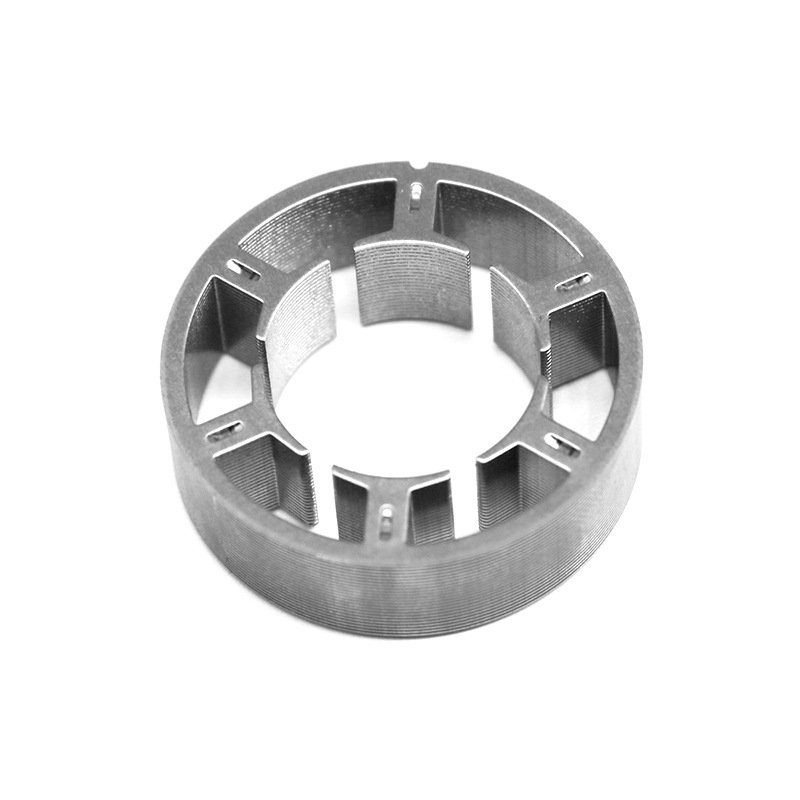

BURR-FREE LAMINATIONS OVER MILLIONS OF STROKES

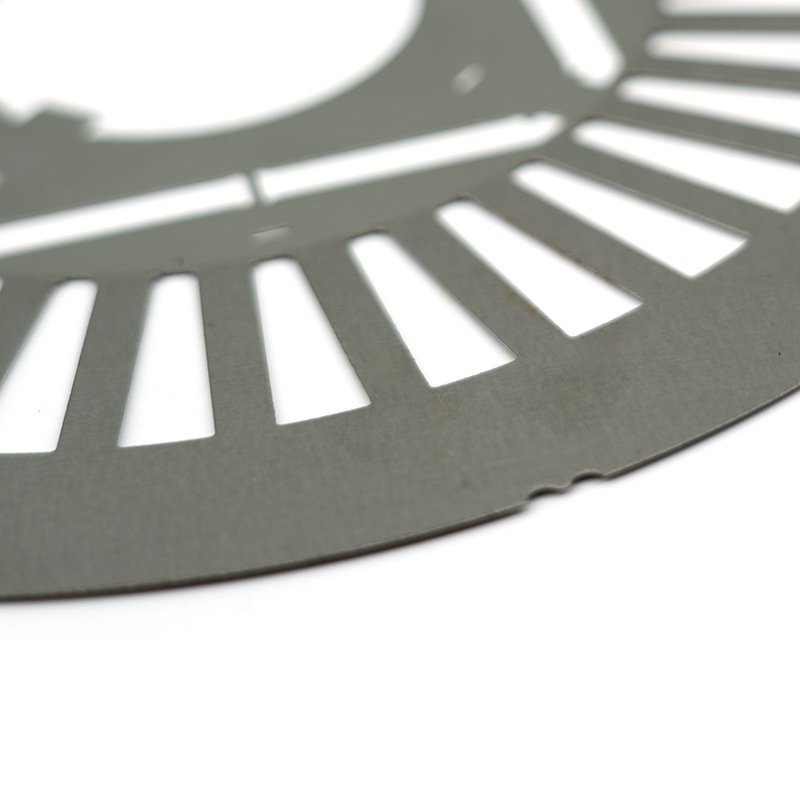

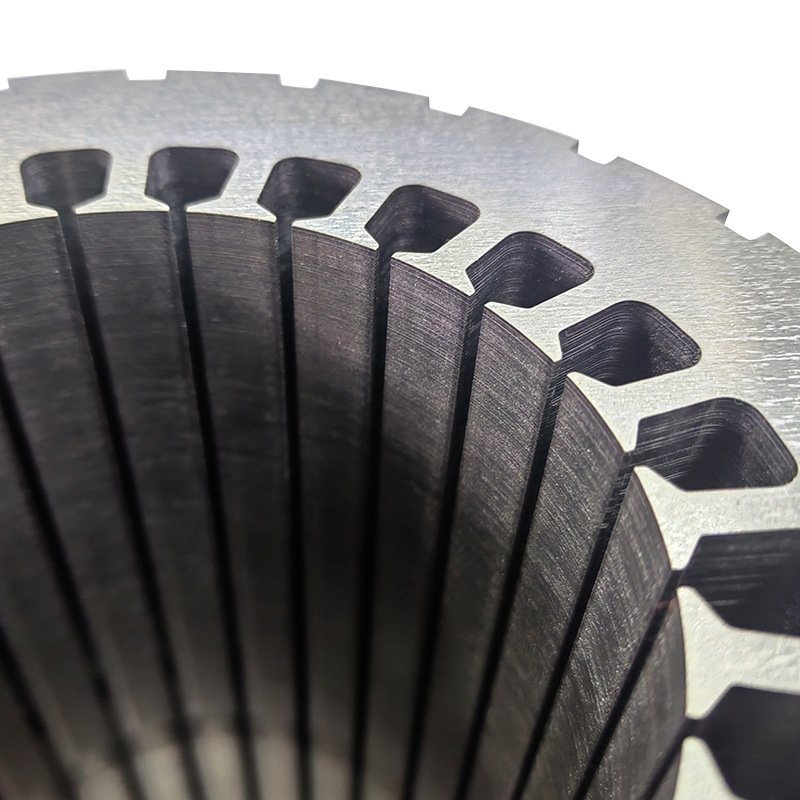

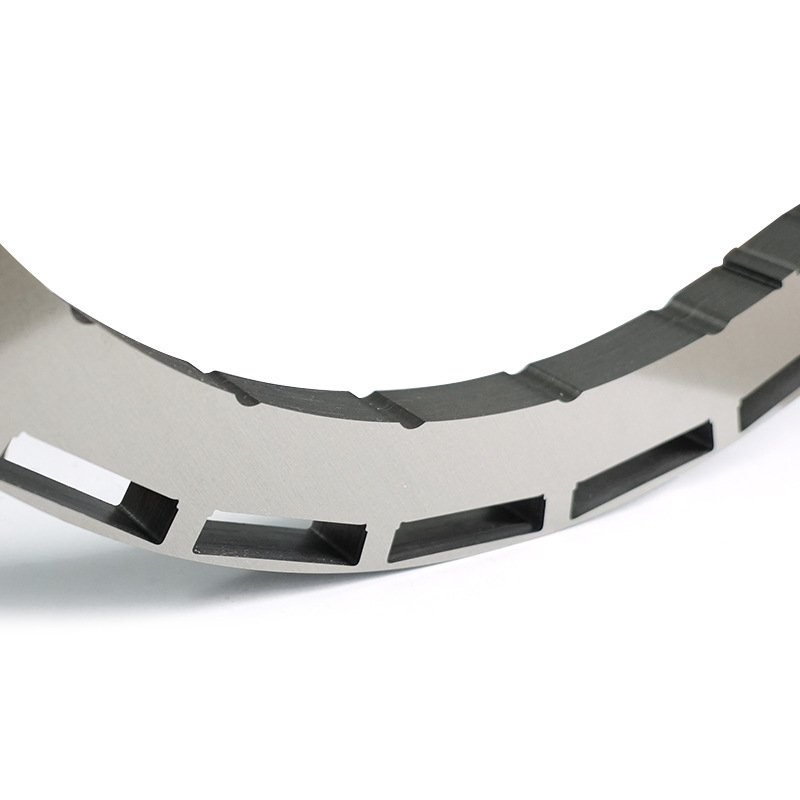

The ultimate proof of our premium tungsten carbide dies lies in the laminations they produce. Even after 50 million continuous strokes, our tooling delivers razor-sharp, burr-free edges on electrical steel. Explore our gallery of precision-stamped motor cores below, all manufactured to sub-micron accuracy for both progressive stamping Progressive Die and large-scale lamination production.
TUNGSTEN CARBIDE VS. TOOL STEEL: WHY INVEST IN CARBIDE DIES?
While traditional tool steel dies (such as SKD11 or D2) have lower initial costs, premium tungsten carbide dies deliver up to 10x longer production life between sharpenings. Manufactured using our 100% in-house precision machining, our carbide motor core tooling drastically reduces press downtime and lowers your overall cost-per-stroke. Whether configured as high-speed progressive dies or single-hit compound dies, carbide dies represent the ultimate investment for high-volume lamination stamping.
10X+ TOTAL DIE LIFESPAN
3M+ STROKES PER REGRIND

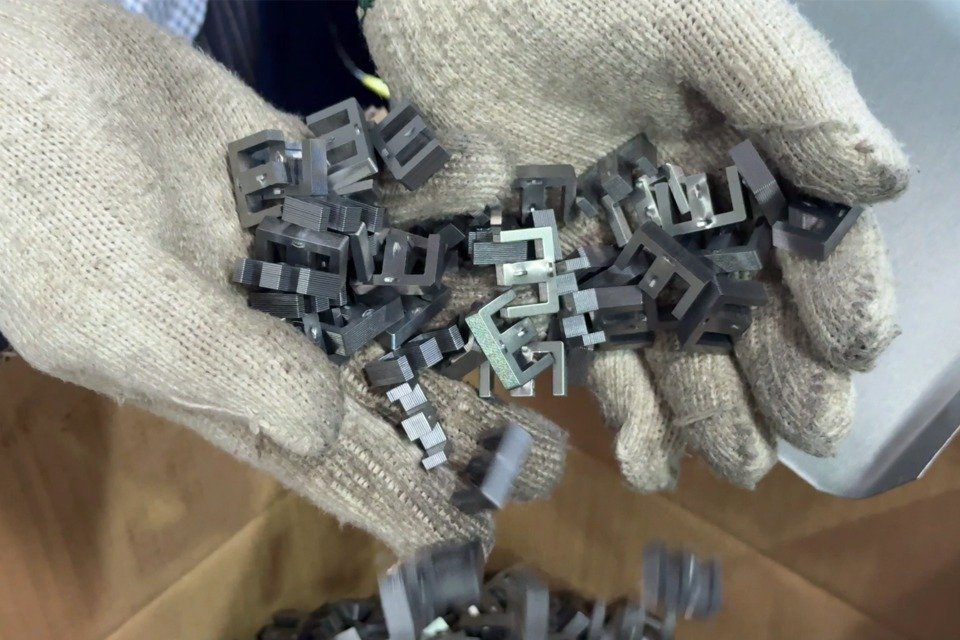

SUB-MICRON BURR CONTROL

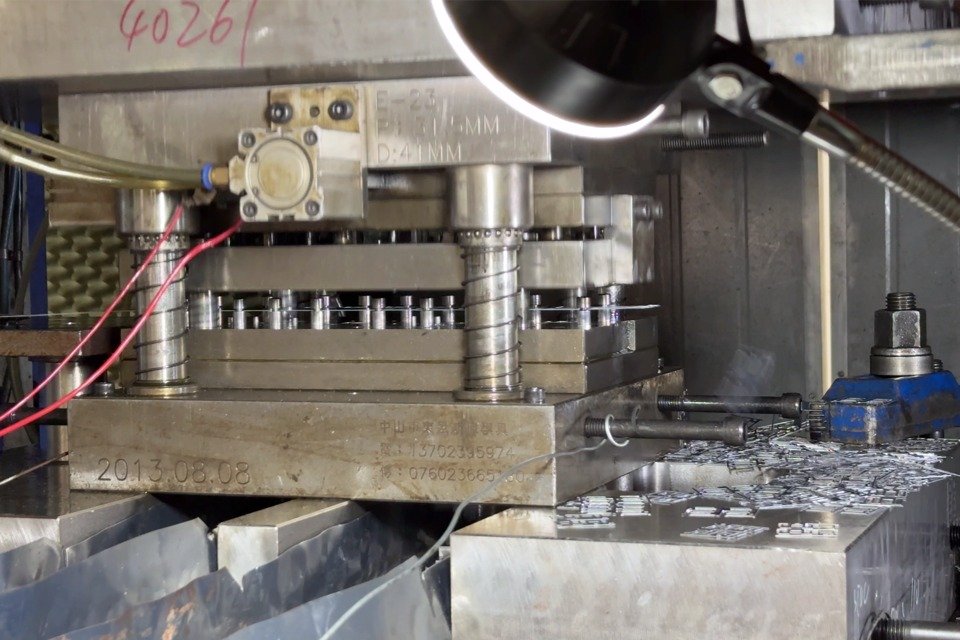

LOWER TOTAL COST PER STROKE
TAILORED FOR HIGH-SPEED & HIGH-PRECISION MOTOR MANUFACTURING
Engineered for continuous high-volume and high-SPM lamination stamping with minimal wear. Our tungsten carbide dies deliver unmatched durability across demanding sectors—from EV traction motors and servo & BLDC motors to high-speed appliance motors. Looking for short-run or large-diameter tooling instead? Explore our motor core compound dies.
HIGH-PRECISION CARBIDE SPARE PARTS & TOOLING MAINTENANCE
EXPERT ANSWERS ON TUNGSTEN CARBIDE MOTOR DIES
What grades of tungsten carbide do you use for motor core dies?
We primarily utilize premium ultra-fine grain tungsten carbide (equivalent to Sandvik or Kennametal high-end grades) specifically formulated for stamping abrasive silicon steel. These grades offer the perfect balance of extreme hardness (HRA 89-92) and transverse rupture strength.
How do you prevent micro-chipping in carbide punches during high-speed stamping?
By selecting carbide grades with an optimized cobalt binder ratio to absorb impact. Coupled with our in-house stress-relieving EDM wire-cutting (multiple slow-feed cuts) and sub-micron precision grinding, micro-chipping is effectively eliminated even at high SPM.
Is a tungsten carbide die worth the higher initial cost compared to SKD11 tool steel?
Absolutely, for medium to high-volume production. While the upfront cost is higher, a carbide die lasts up to 10 times longer and requires 80% less maintenance downtime. The overall cost-per-stroke becomes significantly lower, maximizing your long-term ROI.
Can worn tungsten carbide inserts be reground, and how many times?
Yes, our carbide inserts are designed with ample regrinding allowance. You can typically perform 15 to 20 regrinds over the die’s lifecycle, with each precise regrind yielding over 3,000,000 additional burr-free strokes.
What is the typical lead time for manufacturing a custom carbide stamping die?
Due to the rigorous sub-micron grinding and slow-feed wire EDM processes required for shaping high-hardness tungsten carbide, our standard lead times range from 6 to 8 weeks after DFM and CAD drawing approval.
