Sub-Micron Concentricity
Multi-stage pilot pins and optical-ground die matrices ensure the stator bore and rotor outer diameter share a mathematically perfect center, critical for uniform air gaps.
INDUSTRIAL AUTOMATION MOTOR SOLUTIONS

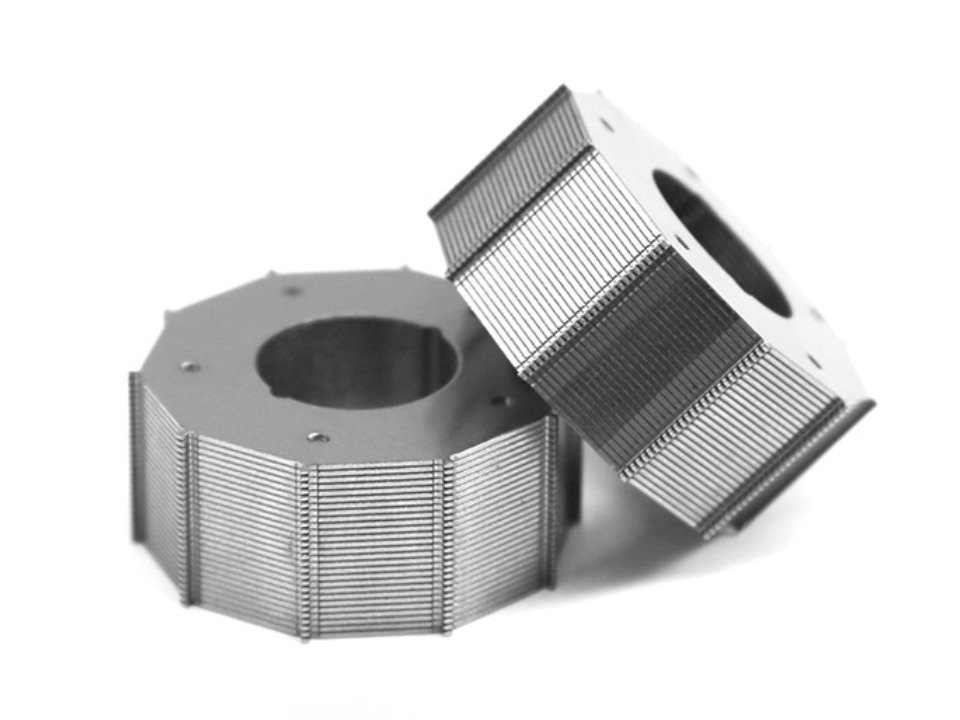

ULTRA-PRECISION MOTOR CORE STAMPING FOR SERVO & STEPPER MOTORS
Drive the future of industrial robotics, CNC machinery, and smart automation. We engineer high-precision stator and rotor cores that guarantee sub-micron concentricity and flawless slot geometry. Whether you need custom carbide progressive dies for in-house stamping or fully assembled motor core laminations, our solutions ensure rapid dynamic response and zero cogging torque for your motion control systems.
THE MOTION CONTROL CHALLENGE
ACHIEVING FLAWLESS CONCENTRICITY FOR PRECISE POSITIONING

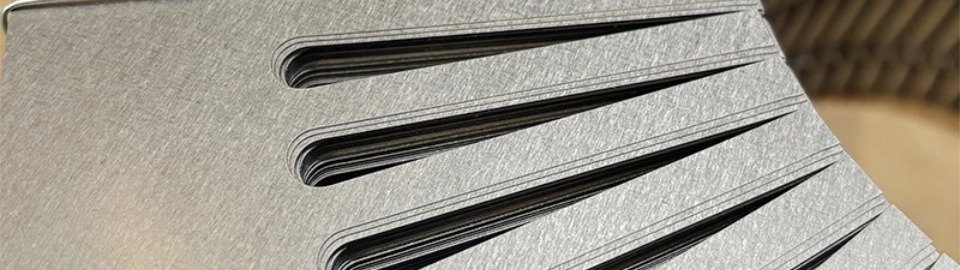

In servo and stepper motors, even a 0.01mm air gap deviation can cause torque ripple, leading to inaccurate robotic positioning and vibration. Achieving such extreme concentricity during high-speed stamping is a massive challenge. By utilizing Sodick wire-cut tungsten carbide punches, we guarantee an absolute tight clearance between the punch and die matrix. This results in perfectly symmetrical, burr-free slots and dead-center bore alignment, maximizing your motor’s torque density and positional accuracy.
ENGINEERED FOR ACCURACY
ADVANCED STAMPING TECHNOLOGIES FOR SERVO MOTORS
Our progressive dies are designed to eliminate electromagnetic harmonics and mechanical inconsistencies. Explore our specialized stamping and core assembly techniques tailored for high-end industrial automation.
PREMIUM MATERIALS
INDUSTRIAL-GRADE SILICON STEEL & EXACTING TOLERANCES
High-responsiveness servo motors require silicon steel with excellent magnetic permeability and low hysteresis. We carefully select 0.35mm and 0.50mm CRNGO grades (such as 35W210 or 50W250) from premium mills to guarantee rapid magnetic flux reversal. Every batch is validated by our 100% CMM inspection protocols.
SCALABLE MANUFACTURING
CHOOSE YOUR SERVO MOTOR SUPPLY STRATEGY
Scale your robotics or CNC equipment production with ease. Choose to import our ultra-precise carbide stamping dies to run in your own press shop, or outsource the full stator and rotor core production to our ISO-certified automated facility.
Buy the Tooling: Progressive Stamping Dies
Import sub-micron precision carbide dies designed specifically for servo and stepper motors. Enjoy a guaranteed 120 million stroke lifespan with zero eccentricity.
Explore Tooling Solutions ➔Buy the Cores: Mass Production OEM
Let us handle the stamping. We deliver ready-to-assemble, perfectly interlocked or welded servo motor cores straight to your assembly line, saving you tooling costs.
Explore OEM Lamination ➔SERVO MOTOR STAMPING FAQ
EXPERT ANSWERS ON AUTOMATION MOTOR CORES
Have questions about minimizing cogging torque, achieving sub-micron concentricity, or prototyping robotic motor cores? Review our technical FAQs below or contact our engineering team directly.
How do you guarantee concentricity in high-speed servo motor stamping?
We achieve absolute concentricity by machining our tungsten carbide die matrices and punches with multiple-pass Sodick Wire EDMs, achieving ±0.001mm precision. Combined with multi-stage pilot pins in the progressive die, we prevent any material shifting during the press stroke.
Can your progressive dies reduce cogging torque in stepper motors?
Yes. Cogging torque is devastating for stepper motors. We design our dies with automated in-die rotary skewing features, which minutely rotate each rotor lamination during stacking. This skews the magnetic field, effectively smoothing out low-speed torque ripples.
What thickness of silicon steel do you recommend for industrial servo motors?
For standard industrial servos, 0.50mm CRNGO is highly cost-effective. However, for highly dynamic robotic servos requiring rapid acceleration and deceleration with minimal core loss, we strongly recommend 0.35mm premium electrical steel.
Do you support low-volume prototyping for new robotics motors?
Absolutely. We understand that robotics R&D requires extensive testing. We offer precision laser cutting and slow-feed wire EDM prototyping for validation runs. Once your design is locked in, we seamlessly transition you to high-volume progressive die stamping.
