Executive Summary:
- Client: Leading Compressor & HVAC Manufacturer
- Location: Malaysia
- Challenge: Unmet precision requirements from multiple global suppliers for high-pressure compressor stators and rotors.
- Solution: 2 sets of custom tungsten carbide progressive dies engineered with sub-micron Sodick EDM machining and in-die auto-interlocking.
- Result: 100% success at T1 trial stamping, achieving zero-burr lamination stacks delivered directly to Malaysia.
1. The Challenge: Strict Tolerances & Failed Overseas Suppliers
An established HVAC compressor manufacturer in Malaysia was developing a new series of high-efficiency commercial compressor motors. Compressor motor cores operate in harsh, hermetically sealed environments under constant high pressure and refrigerant gas exposure, requiring:
- Absolute Concentricity: To prevent airgap deviations and severe mechanical vibration.
- Microscopic Burr Limits (<0.01mm): To eliminate inter-lamination short circuits and hysteresis losses.
- Indestructible Core Rigidity: To withstand intense starting torque without delamination.
Before contacting us, the Malaysian engineering team evaluated several domestic and international tooling manufacturers. However, none could satisfy their stringent DFM (Design for Manufacturability) requirements or guarantee long-term die stability without excessive maintenance downtime.
2. Our Engineering Solution: 100% In-House Design & Precision Machining

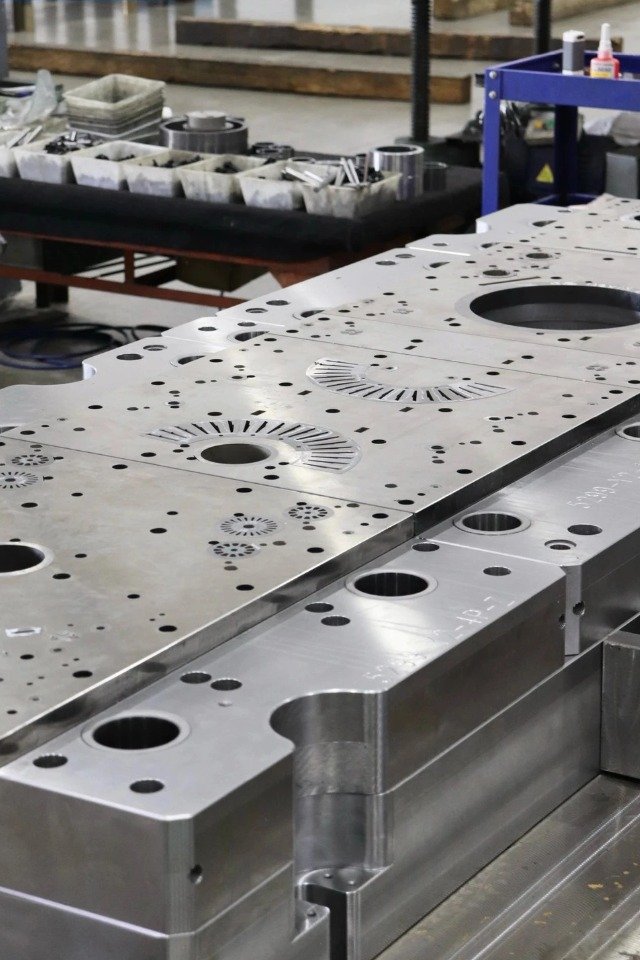

Upon reviewing the client’s 2D/3D motor core drawings under a strict NDA, our engineering team conducted a comprehensive DFM feasibility study. To solve the client’s pain points, we customized two sets of heavy-duty tungsten carbide progressive dies for their stator and rotor laminations.
Key Technical Strategies:
- Optimized Strip Layout: Designed high-yield multi-station progressive layouts that maximized electrical steel utilization while preventing thermal stress.
- Sub-Micron Machining Arsenal: Utilized our fleet of Japanese Sodick Slow-Feed Wire EDMs and Taiwan precision profile grinders to machine ultra-hard Sandvik carbide inserts to an astonishing ±0.002mm contour tolerance.

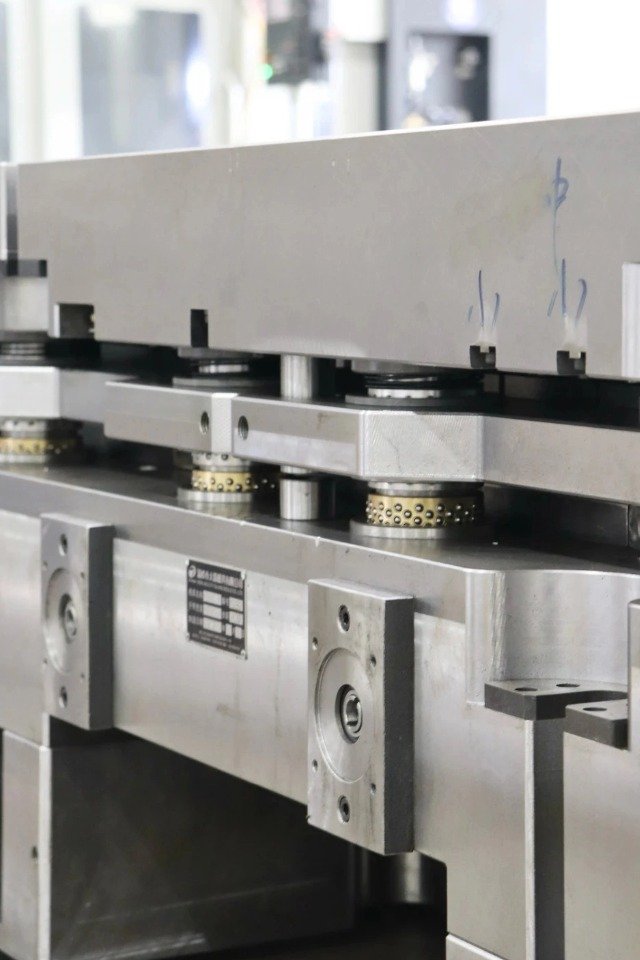

- Automated In-Die Interlocking: Integrated high-strength automated interlocking stations into the die, allowing the laminations to lock together rigidly inside the press without secondary welding.
3. Trial Stamping & CMM Inspection (T1 Success)

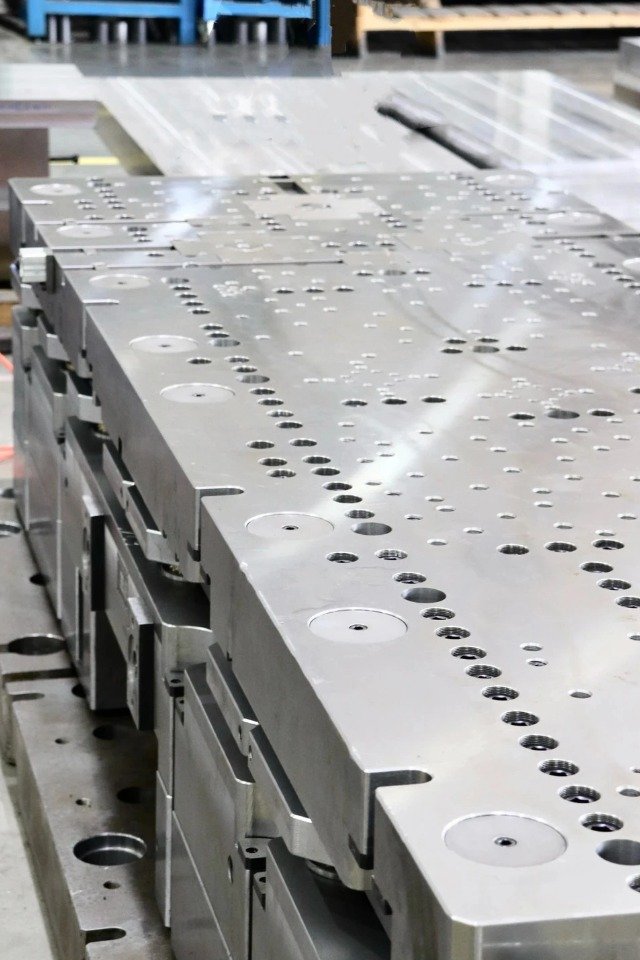

True quality is proven on the press floor. Once both progressive dies were assembled by our veteran toolmakers, we mounted them on our high-speed precision presses for T1 trial stamping.
Inspection Results:

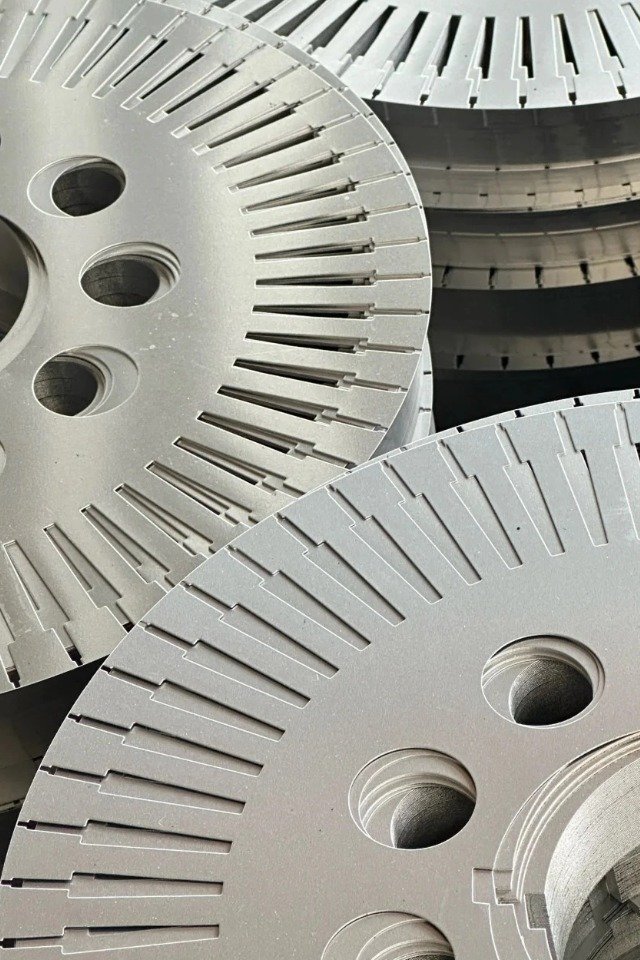

- Burr Height: Strictly controlled under 0.008mm, far surpassing the client’s <0.01mm specification.
- Concentricity & Flatness: Verified via our Zeiss Coordinate Measuring Machine (CMM), ensuring flawless airgap distribution.

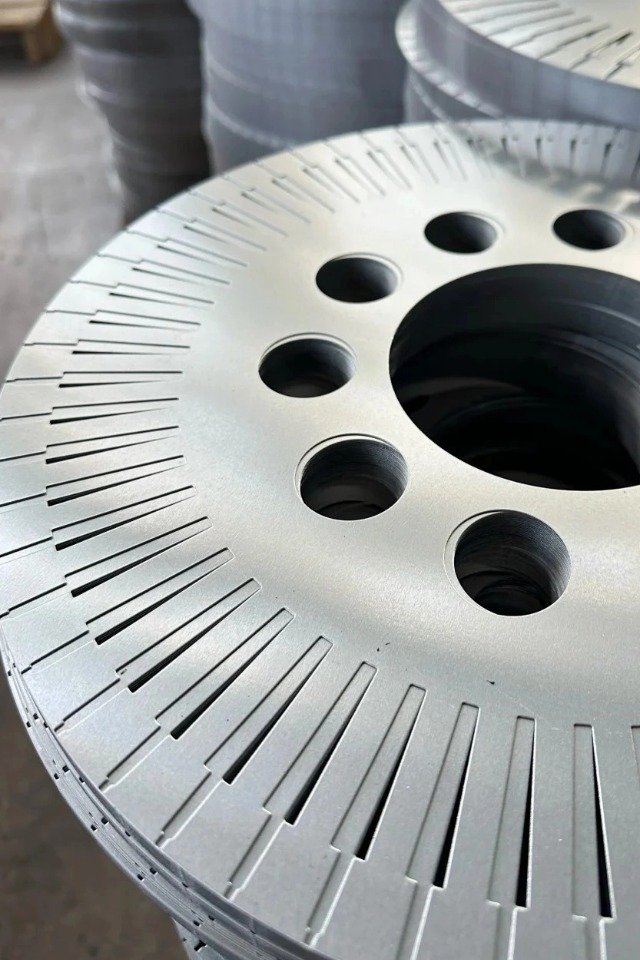

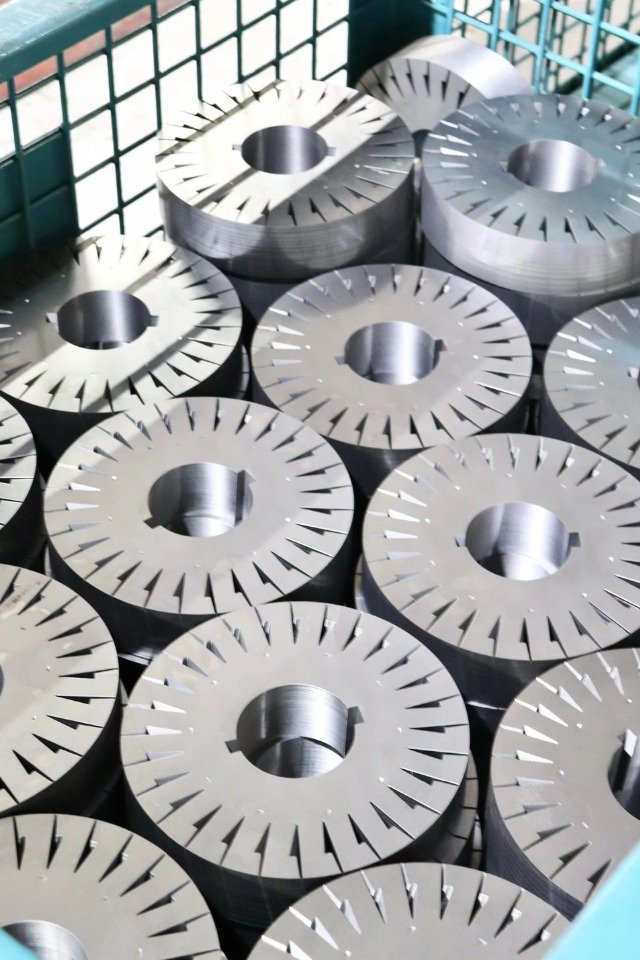

- Stacking Integrity: Stator and rotor stacks demonstrated impenetrable rigidity, completely ready for direct copper winding.
4. Seamless Delivery & Client Value
Both sets of completed compressor motor core dies, along with T1 sample stacks, First Article Inspection Reports (FAIR), and Mill Test Certificates (MTC), were vacuum-sealed with VCI anti-rust protection and dispatched in heavy-duty wooden crates to Malaysia.
Upon receiving the tooling, the client seamlessly integrated the dies into their Malaysian production lines, achieving immediate mass production with zero defects.
“After experiencing delays and technical bottlenecks with other suppliers, finding a manufacturer that handles everything in-house—from design to trial stamping—was a game-changer for our supply chain.” — Lead Tooling Engineer, Malaysian HVAC Group
5. Need Custom Tooling for Compressor Motors?
Whether you are manufacturing rotary, scroll, or reciprocating compressor motors, our engineering team provides end-to-end tooling solutions designed for continuous, high-yield production.
