Executive Summary
- Client: Industrial & Commercial Compressor Manufacturer
- Location: Mexico
- Challenge: Needing high-precision stator laminations for a new compressor series while strictly avoiding the massive upfront capital expenditure (Capex) required for custom progressive dies.
- Solution: After connecting at an international trade show and conducting deep engineering reviews, we transitioned their project from traditional stamping to a high-speed Precision Laser Cutting OEM solution.
- Result: Successfully delivered top-tier stator laminations with zero tooling investment, significantly lowering the client’s overall manufacturing costs and accelerating their time-to-market.
1. The Challenge: High Tooling Costs for Medium-Volume Production
A prominent compressor manufacturer based in Mexico was developing a new, highly efficient motor for their commercial compressor line. To maintain competitive pricing in the North American market, they needed to strictly control their manufacturing costs.
During an international manufacturing trade show, their procurement and engineering team visited our booth. They expressed a common industry pain point: they required extremely precise stator laminations, but their initial production volume did not justify the heavy investment required to build a multi-station tungsten carbide progressive die. They needed an OEM partner who could provide a flexible, cost-effective alternative without sacrificing the electromagnetic performance of the stators.
2. The Engineering Consultation: Stamping vs. Laser Cutting
At our factory, we don’t just take orders; we provide consultative engineering. Following the trade show, our engineering team engaged in several in-depth virtual meetings with the Mexican client.
After thoroughly reviewing their 2D/3D CAD drawings and analyzing their annual production volume (DFM analysis), we advised against traditional stamping. Instead, we proposed a Fiber Laser Cutting OEM Strategy.
Why Laser Cutting was the Perfect Fit:
- Zero Tooling Cost: Laser cutting eliminates the need to design and manufacture physical dies, instantly saving the client tens of thousands of dollars in upfront Capex.
- Ultimate Flexibility: Any minor design modifications to the stator slots or outer diameter (OD) could be adjusted instantly in our CNC software, without the need to physically modify hard tooling.
- No Mechanical Stress: Unlike mechanical shearing, laser cutting is a non-contact process. It minimizes residual mechanical stress on the electrical steel edges, preserving the material’s magnetic permeability.
3. Precision Production & Quality Control
Upon the client’s approval of the laser cutting strategy, we initiated the OEM production run. We utilized premium cold-rolled non-oriented (CRNGO) silicon steel to ensure minimal core loss.
Our state-of-the-art fiber laser cutting centers sliced through the electrical steel with micro-level precision. To ensure the stators met the strict requirements of compressor motors:
- We utilized nitrogen assist gas during the cutting process to prevent edge oxidation.
- The cut laminations underwent strict visual and CMM inspections to verify slot geometry and confirm that the heat-affected zone (HAZ) was kept to an absolute minimum, ensuring zero burr interference during the final stacking process.
4. Final Delivery & Client Satisfaction
The laser-cut stator laminations were carefully packed with VCI anti-rust protection and shipped securely to the client’s facility in Mexico.

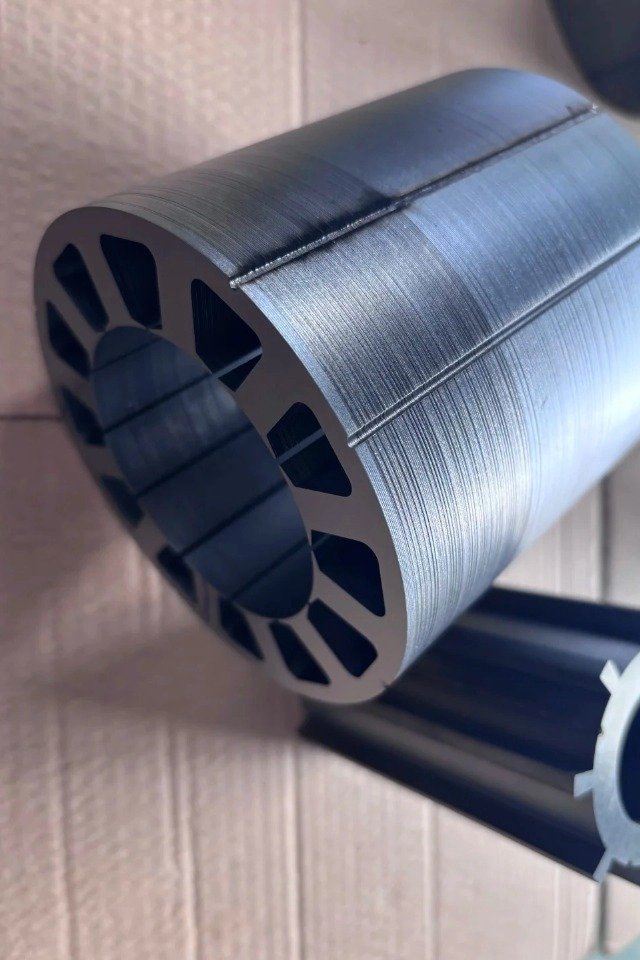

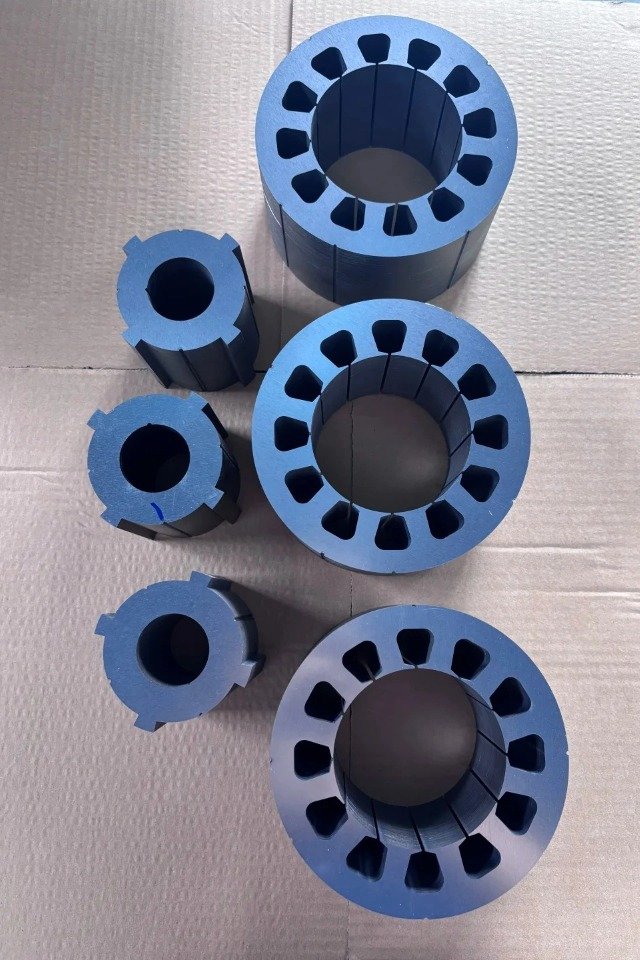

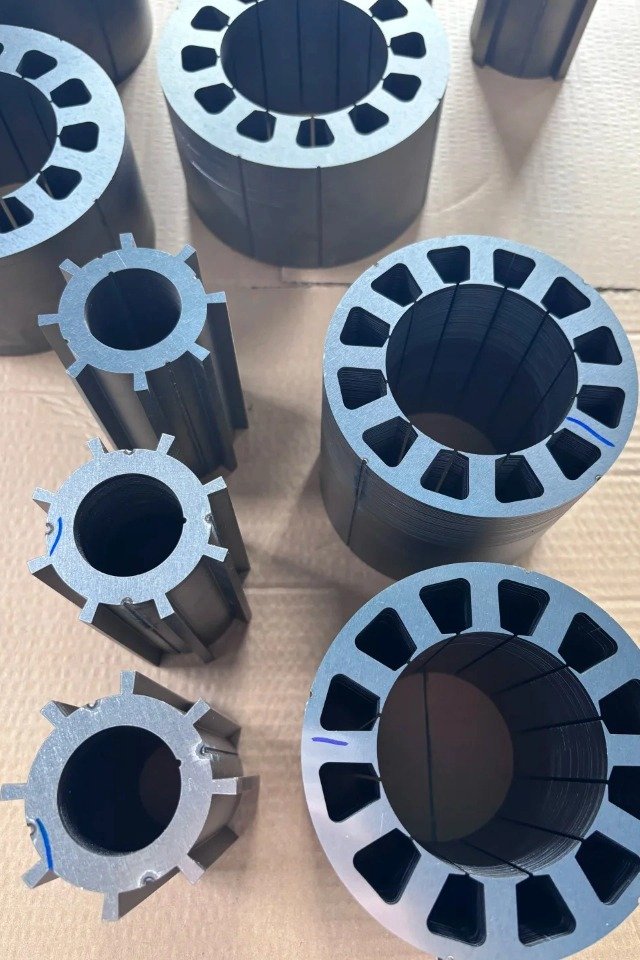

Upon receiving the shipment, the Mexican manufacturer was highly impressed. The laminations stacked perfectly, allowing their assembly line to proceed smoothly. By trusting our engineering advice and opting for our laser-cutting OEM service, they successfully bypassed heavy tooling costs, effectively lowering their overall production budget while receiving world-class motor components.
“Meeting their team at the exhibition was a turning point for this project. They didn’t just try to sell us an expensive die; they analyzed our actual needs and provided a laser-cutting solution that drastically reduced our costs. The precision is outstanding, and we are thrilled with the results.” — Purchasing Manager, Mexican Compressor Manufacturer
5. Need Flexible Motor Core Manufacturing Solutions?
Whether you need millions of stamped parts via progressive dies or cost-effective laser-cut laminations for medium-volume runs, our factory has the technology to optimize your budget.
