Executive Summary
- Client: Motor Assembly Manufacturer
- Location: Vietnam
- Challenge: Lack of local precision stamping infrastructure and high tooling investment costs. Need for a reliable, cost-effective overseas OEM partner.
- Solution: Turnkey motor core lamination stamping services. We engineered the progressive dies in-house and ran high-volume mass production on our automated press lines.
- Result: Delivered highly precise, ready-to-wind interlocking stators and rotors on time and under budget, ensuring immense client satisfaction.
1. The Challenge: Supply Chain Gaps & Cost Pressures
A growing motor assembly manufacturer in Vietnam was looking to scale their production capacity. However, they faced a significant supply chain bottleneck: there was a severe lack of local, high-precision contract manufacturers (OEMs) capable of producing high-quality motor core laminations.
Building an in-house stamping facility was out of the question due to the massive capital expenditure (Capex) required for high-speed presses and custom tungsten carbide dies. To maintain a competitive edge and strictly control costs without sacrificing quality, the Vietnamese client turned their search to China. After rigorously evaluating and auditing several Chinese tooling and stamping factories, they selected our facility based on our vertically integrated capabilities and transparent cost-to-performance ratio.
2. Our Manufacturing Solution: Turnkey Lamination OEM
Instead of just selling the tooling, we offered the client a complete Mass Production OEM Solution. This allowed the Vietnamese manufacturer to skip the heavy tooling investment and focus entirely on their core competency: motor assembly.
Key OEM Strategies:
- In-House Tooling Development: Our engineering team designed and manufactured the high-speed progressive die at our own expense (amortized over the production volume). This ensured the die was perfectly optimized for our specific press machines.
- Premium Material Selection: To balance cost-efficiency with electromagnetic performance, we sourced high-grade 0.50mm Cold Rolled Non-Oriented (CRNGO) silicon steel directly from top-tier mills (Baosteel/WISCO).

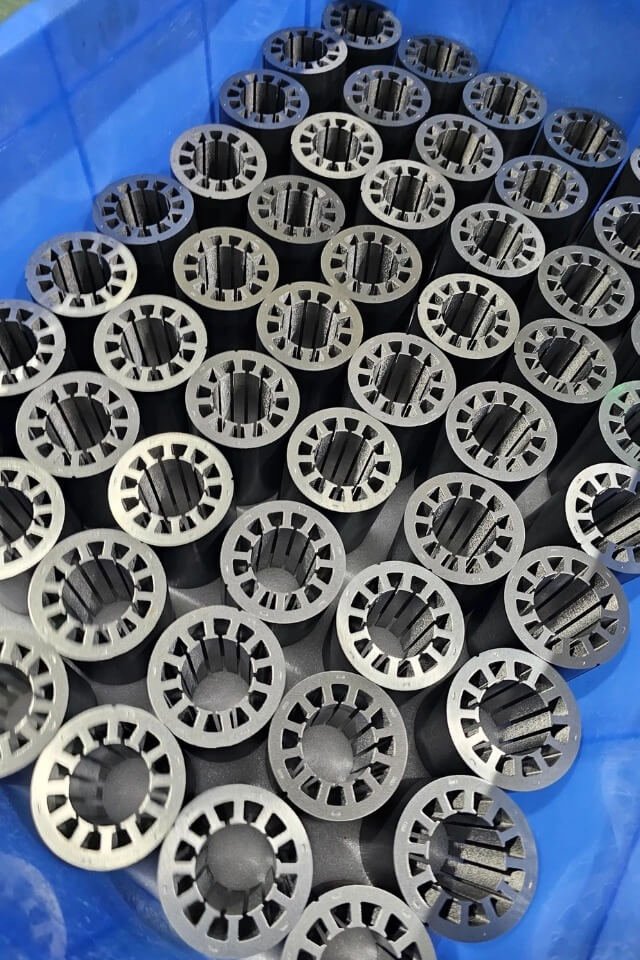

- Automated Mass Stamping: The laminations were stamped on our 500+ SPM high-speed automated lines. We utilized in-die auto-interlocking technology, meaning the stator and rotor cores came out of the press perfectly stacked, rigidly secured, and ready for winding.
3. Quality Control & Overseas Logistics
Cost-effective does not mean low quality. During the mass production run, our QA team enforced strict In-Process Quality Control (IPQC).
- We utilized Zeiss CMMs and 2D optical projectors to verify that the concentricity and slot geometry of the laminations were mathematically perfect.
- Burr heights were strictly monitored and kept under 0.01mm.

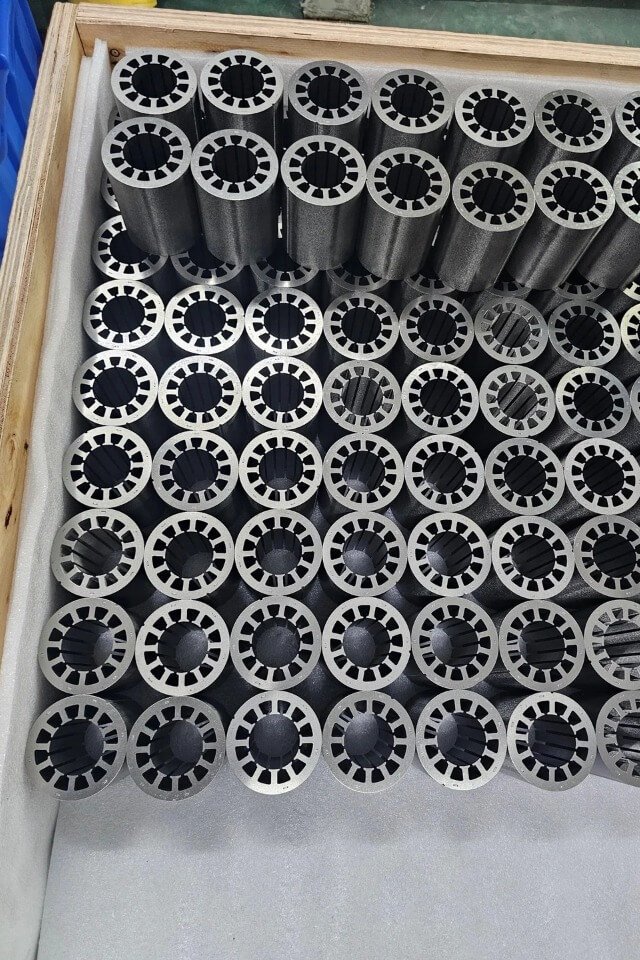

Knowing the humid conditions of ocean freight from China to Vietnam, our packaging team implemented robust anti-corrosion protocols. The finished motor core stacks were coated with premium VCI anti-rust oil, vacuum-sealed in moisture-barrier bags, and securely packed in fumigated wooden pallets to prevent any transit damage.
4. Seamless Delivery & Client Satisfaction
The shipment arrived at the client’s assembly plant in Vietnam right on schedule. The client’s production line immediately began copper winding without any secondary processing required for the cores.
The Vietnamese team expressed immense satisfaction with the dimensional consistency, stack rigidity, and overall cost-effectiveness of the batch. By partnering with us for OEM stamping, they successfully bypassed the high costs of local manufacturing while significantly accelerating their time-to-market.
“Finding a reliable OEM partner abroad who understands both precision and cost-control is rare. Their ready-to-wind cores integrated seamlessly into our assembly lines, proving to be the most cost-effective decision for our company.” — Production Director, Vietnamese Motor Assembly Plant
5. Looking for a Reliable Lamination Stamping Partner?
Skip the tooling investment and let our automated factory handle your mass production. From small batch runs to millions of units, we deliver 100% inspected motor cores globally.
